What is a Film Capacitor



A film capacitor is a type of capacitor that uses metal foil as the electrodes, which is combined with plastic films such as polyester, polypropylene, polystyrene, or polycarbonate. These materials are layered and rolled into a cylindrical structure. Depending on the type of plastic film used, they are classified as polyester capacitors (also known as Mylar capacitors), polypropylene capacitors (PP capacitors), polystyrene capacitors (PS capacitors), and polycarbonate capacitors.



Classification of Film Capacitors



Film capacitors can be categorized



By Dielectric Material



•
• T-type: PET – Polyethylene Terephthalate
• P-type: PP – Polypropylene
• N-type: PEN – Polyethylene Naphthalate



By Film Type



•
• Polyester Capacitors (also known as Mylar Capacitors),e.g:CL21 film capacitor
• Polypropylene Capacitors (PP Capacitors),e.g:CBB21 film capacitor,CBB81 film capacitor
• Polystyrene Capacitors (PS Capacitors)
• Polycarbonate Capacitors



Their structure is similar to paper dielectric capacitors, with dielectrics such as polyester or polystyrene. Polyester film capacitors have a high dielectric constant, small size, large capacity, and good stability, making them suitable for bypass capacitors. Polystyrene film capacitors have low dielectric loss, high insulation resistance, but a large temperature coefficient, making them suitable for high-frequency circuits.



By Terminal Type



•
• DC Film Capacitors: Used in circuits powered by DC sources, including general-purpose, power line interference suppression, pulse, and precision types.
• AC Film Capacitors: Used in circuits powered by AC sources, including types for motor starting and running, and power factor compensation.



Advantages of Film Capacitors



Film capacitors are known for their excellent performance due to several features:

1. Wide Temperature Range: They can operate over a broad temperature range with minimal limitations.
2. Extremely Long Lifespan: They have a virtually unlimited lifespan if undamaged.
3. Self-Healing: Metalized electrodes have self-healing capabilities, allowing for automatic repair of minor damage.
4. High Voltage Tolerance: They can withstand very high voltages without issues.
5. Non-Polarized: Unlike electrolytic capacitors, film capacitors are non-polarized and have very low Equivalent Series Resistance (ESR).
6. Good Frequency Characteristics: They perform well in terms of frequency characteristics.



Applications of Film Capacitors



Film capacitors are used in various industries including electronics, home appliances, communications, power, electrified railways, hybrid vehicles, wind power, and solar power. As technology advances and industries experience shorter upgrade cycles, film capacitors become indispensable due to their excellent electrical performance and reliability. With further development in digitalization, informatization, and network construction, and increased investments in power grid construction, electrified railways, energy-efficient lighting, and hybrid vehicles, the demand for film capacitors is expected to grow rapidly in the coming years.

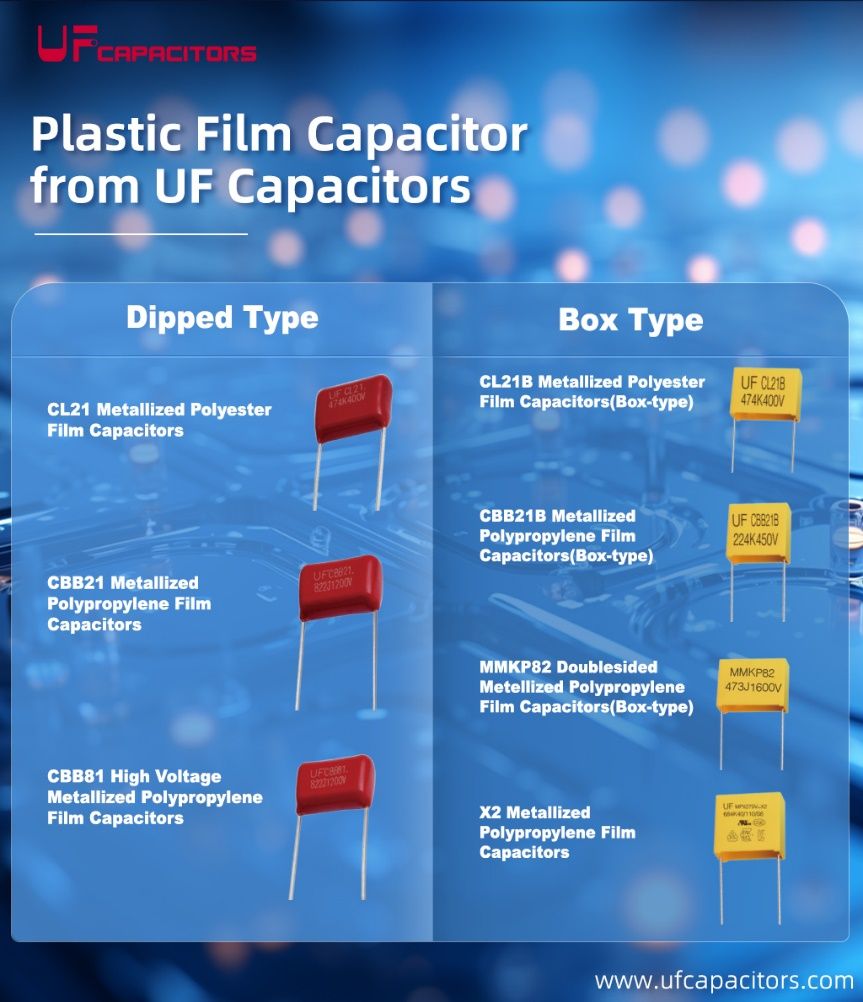

UF Capacitors already supplies CL21, CL21B, CBB21,CBB21B,CBB81,MMKP82,CL19 series X2 etc film capacitors.



UF Capacitors now has released Y2 Safety Film Capacitors, which can be used in filters and interference suppression applications under high operating temperature conditions, such as Fast charging power supply, LED lighting, industrial control automation equipment, consumer electronics, medical equipment, new energy automotive electronics, etc.And it has obtained safety approvals: ENEC,VED,UL,CQC.
