When selecting safety capacitors, many factors need to be considered, such as the size of the capacitor to ensure it fits within the design, rated voltage, and capacitance value. One common question people have is whether a larger capacitance is always better when choosing a safety capacitor.
This understanding is actually incorrect. While it is true that a higher rated voltage is generally preferable, the capacitance value should be chosen based on the circuit design requirements. It is best to select a capacitance value that closely matches the design needs—having a slightly higher or lower value is acceptable, but the difference should not be too large.
Larger capacitance safety capacitors do have certain advantages, such as providing a greater load capacity. However, an excessively large capacitance also has drawbacks. For example, the charging and discharging time will increase, which can be problematic in high-frequency circuits. If the charging and discharging time is too long, the capacitor’s high-frequency performance will be reduced. Additionally, in filtering circuits, an excessively large capacitance is not always beneficial because larger capacitors tend to have greater parasitic inductance, which can negatively affect the filtering performance and overall circuit stability.
Therefore, while a higher rated voltage is generally better, the capacitance value should match the circuit design requirements as closely as possible rather than simply opting for a larger value.
When selecting a safety capacitor, key factors to consider include capacitance value, rated voltage, lead spacing, dimensions, material, tolerance, certification, and compliance with safety standards.
At UF Capacitors, our product -safety capacitor descriptions typically follow examples like the ones below, reflecting the key factors we consider:
Eg1: X1Y2 2200pF 300VAC Y5U ±20% P:7.5mm Y-kinked D:10mm Bulk RoHS

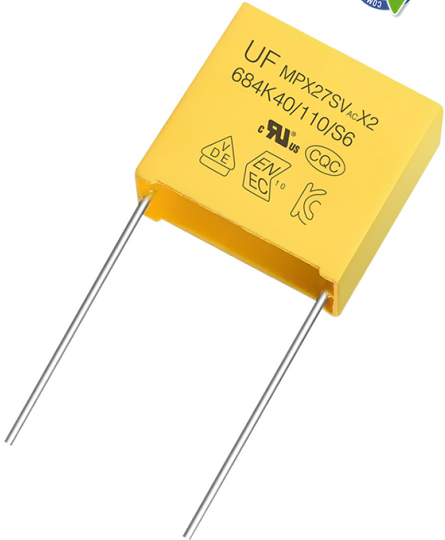

Eg2: X2 0.47uF 305VAC ±10% P:22.5mm BULK RoHS Size: 26.5×10×19mm (L×T×H), cut lead 4mm
UF Capacitors has been specializing in capacitor supply for 30 years. For safety capacitors, we mainly offer through-hole types including Y1 500V, Y2 300V, and X2 in 275V, 300V, and 305V variants. We also provide molded SMD Y capacitors with complete safety certifications to meet the needs of most markets.
Additionally, we focus on offering replacements for major first-tier brands. Our safety capacitors can serve as alternatives to Vishay's 30LVS Series, VY1 Series, VY2 Series, MKP3382 Series, MKP3384 Series, and MKP3392 Series; TDK’s CD45 and CS45 Series, B32921C/D-B32928C/D Series, and B81130 Series; and Murata’s DE1 and DE2 Series. With stable lead times and competitive pricing, our products are an excellent choice for replacement needs.
If you are interested in our safety capacitors, please feel free to contact us:
carey@ufcapacitors.com
www.ufcapacitors.com
