Capacitor is one of the three most common passive electronic components, along with resistors and inductors. It is widely used in various electronic circuits, and its performance can affect the characteristics of electronic circuits. Therefore, it is necessary to have a comprehensive understanding of its main features and functions, making it convenient to leverage its strengths and avoid its weaknesses in circuit design."
Title: I. Basic DC Characteristics and Structure Introduction of Capacitors
Capacitors can be repeatedly charged and discharged, similar to batteries. However, the difference with batteries lies in the fact that capacitors store less energy, resulting in a relatively shorter discharge duration.

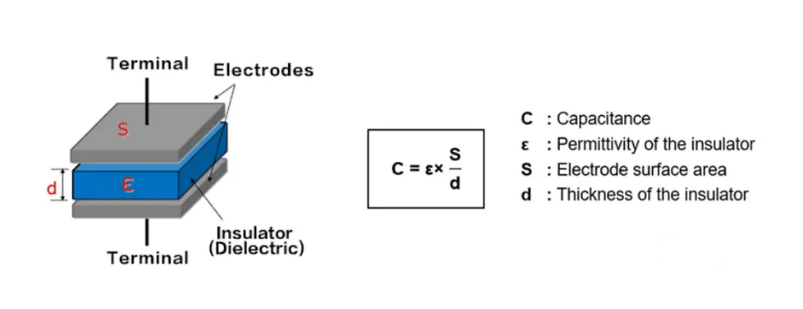

Figure 1 Basic Structure of a Capacitor
The basic structure of a capacitor, as shown in Figure 1, consists of two opposing metal electrode plates with an insulating layer in between. When a DC voltage is applied between the electrodes, it stores charge on the capacitor. This is the fundamental principle of energy storage in capacitors. As depicted in the structure shown in the figure, the capacitance of this capacitor depends on its structural factors. It is directly proportional to the metal electrode plate area (S), inversely proportional to the thickness of the insulating layer between the metal plates (d), and directly proportional to the dielectric constant.
Figure 2 Charging Process of a Capacitor with Constant Current
By charging the capacitor with a constant current source I, we can easily analyze that the rate of change of voltage is proportional to the current. This proportionality factor is the capacitance C. From the charging curve shown in Figure 2, based on the fundamental relationship of capacitor charge, Q = C * U, it can be observed that over time, the voltage rises linearly, and the stored charge linearly increases. Through the analysis above, we can conclude that the rate of change of capacitor voltage is directly proportional to the capacitor current.
Next, we will explore the basic charging and discharging characteristics of a capacitor through simulation. The schematic diagram for simulating capacitor charging is shown in Figure 3.
Figure 3 Schematic Diagram for Simulating the Capacitor Charging Process
On a capacitor with a capacitance value of 0.1u (initial voltage at 0V), connect a 1k resistor in series to limit the current. Then, apply a step voltage signal with an amplitude of 5V to simulate the capacitor charging process. We observe the waveforms of the step voltage (Vin), capacitor voltage (Vcap), and capacitor current (Icap).

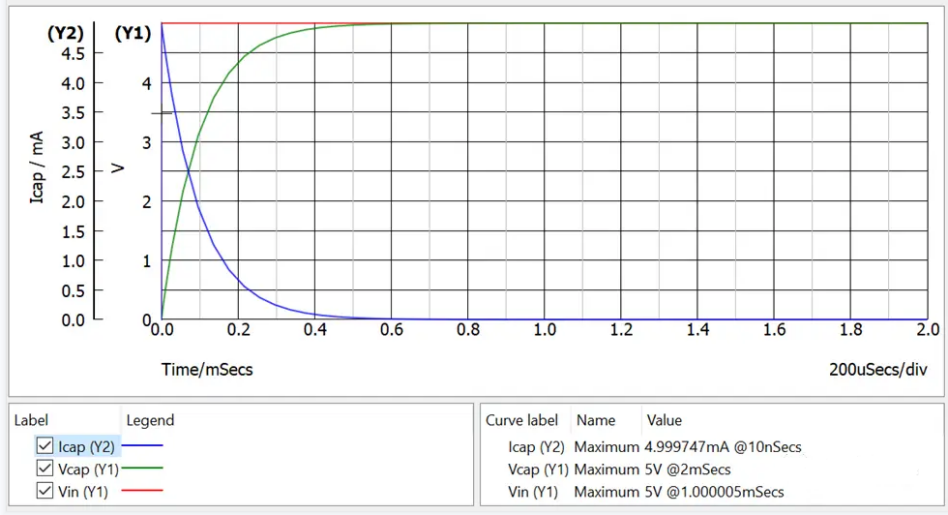

Figure 4 Waveforms of the Capacitor Charging Process with a Step Voltage
