What is safety capacitors

The reason why safety capacitors are called safety regulations refers to their use in situations where the failure of the capacitor will not cause electric shock or endanger personal safety. The safety capacitor includes two types: X capacitor and Y capacitor. Unlike ordinary capacitors, even after the external power supply is disconnected, the stored charges inside the ordinary capacitor will remain for a long time, but the safety capacitor will not have this problem.



It is also an important filter capacitor in the circuit. The majority of safety capacitors are blue, yellow, gray, and red.



Normally the X capacitor is yellow, and the Y capacitor is blue of UF Capacitors







The role of safety capacitors in switching power supplies



1: X safety capacitor, the most commonly used is X2 safety capacitor, and some will use X1 capacitor.

The X2 capacitor is mainly connected in parallel between the power grid, that is, between the live and zero lines of the wires. This type of capacitor can filter out series mode interference (also known as differential mode interference) between the power grid lines. The higher the rated voltage of the X2 capacitor, the higher it becomes. The lowest in the industry is 275VAC, the moderate is 310VAC, and the better rated voltage is 350/380VAC. The higher the rated voltage, the more margin, the longer the lifespan, and the better the filtering effect.

Anti electromagnetic interference is the most common function of X capacitors. Generally, two pins are connected across the zero and live wires, suitable for high-frequency, DC, AC, coupling, and bridging

pulse circuits. They can withstand overvoltage impacts and are generally used in parallel with resistors to discharge charges

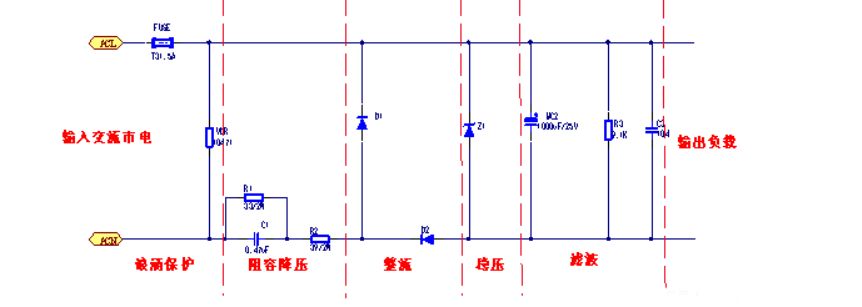

Resistance-capacitor voltage reduction is also commonly used in X capacitors, especially for low-cost finished products. The working principle of capacitor voltage reduction is to use the capacitance generated by the capacitor at a certain AC signal frequency to limit the maximum working current. If a resistive element is connected in series to a capacitor at the same time, the voltage obtained at both ends of the resistive element and the power consumption generated by it depend entirely on the characteristics of the resistive element. Therefore, capacitor voltage reduction is actually achieved by utilizing capacitive reactance to limit current, while capacitors actually play a role in limiting current and dynamically distributing voltage between capacitors and loads

2、The most commonly used safety Y capacitors are Y1 and Y2 safety capacitors

The main function of the Y capacitor is to suppress common mode interference, which can filter out the common mode interference generated by the coupling capacitance of the primary and secondary windings. It is called the "Y capacitor", with one end connected to the DC high voltage on the primary side and the other end connected to the common terminal on the secondary side (used to filter out high-frequency interference in the 10-200MHz frequency band, so short leads are needed for connection. The commonly used capacity range is 1-2.2nF, and the withstand voltage value is generally not less than 1.5kV).

Many isolated switching power supplies add Y capacitors to the primary and secondary to provide a loop to the common mode current of the secondary, reducing the impact of the common mode current on the output. Y capacitors are connected in series between high voltage ground and low voltage ground. Sometimes, two Y capacitors are used in series to improve the voltage resistance between high voltage ground and low voltage ground. Sometimes, there may be insufficient voltage resistance, resulting in the safety capacitor not being able to withstand the voltage. High voltage ceramic capacitors can be used as Y capacitors.

On general switching power supplies, X and Y capacitors need to be used together to protect user safety and EMC filtering



Can switching power supply not use safety capacitors?



In theory, even if safety capacitors are not used, they can still be used, but the lifespan of the power supply will be shortened (there may be abnormal pulse voltages such as lightning in the power supply, which may cause damage to the switch capacitor). At the same time, the power supply itself also needs to pass safety certification. If safety capacitors are not used, the power supply itself cannot pass safety regulations, so safety capacitors on the switch power supply are essential



Application of safety capacitors



The application of safety capacitors is very extensive:

small household appliances,

power supply products,

electromechanical motors,

LED lighting,

chargers,

uninterrupted power supplies, etc



Certification type



No matter what components are, as long as they are legitimate, they must have certification. Safety certification also includes product safety certification, environmental certification, and energy certification. Different countries have different safety regulations, and some require mandatory certification. There are many certifications, such as China's CQC certification, Germany's VDE certification, the United States' UL certification, the European Union's ENEC certification, and Korea's KC certification. When selecting safety capacitors, different certified components should be selected according to different occasions and countries

UF Capacitors safety capacitors have obtained certifications such as CQC, VDE, UL, etc

UF Capacitors produces high quality Safety capacitors, we offer alternative to replace big brand with Much better prices and shorter lead time
